Home  >  Products  >  Wall Washer
<
>
>
<

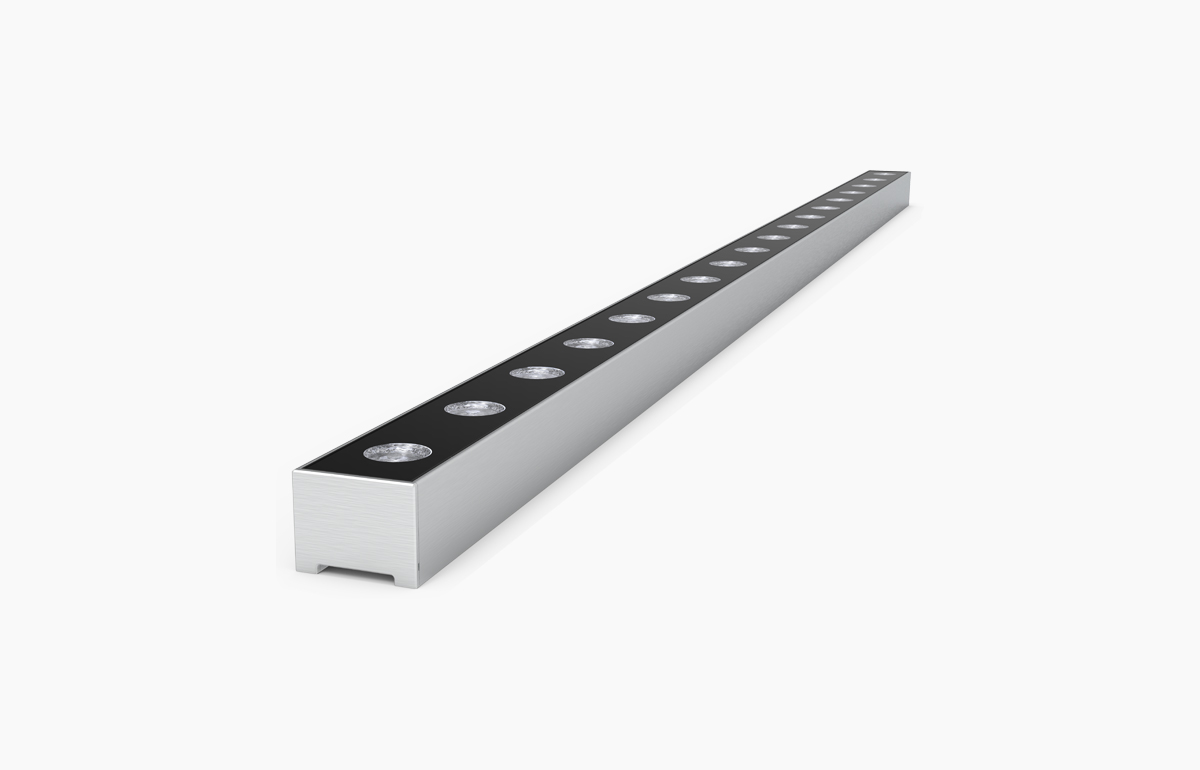

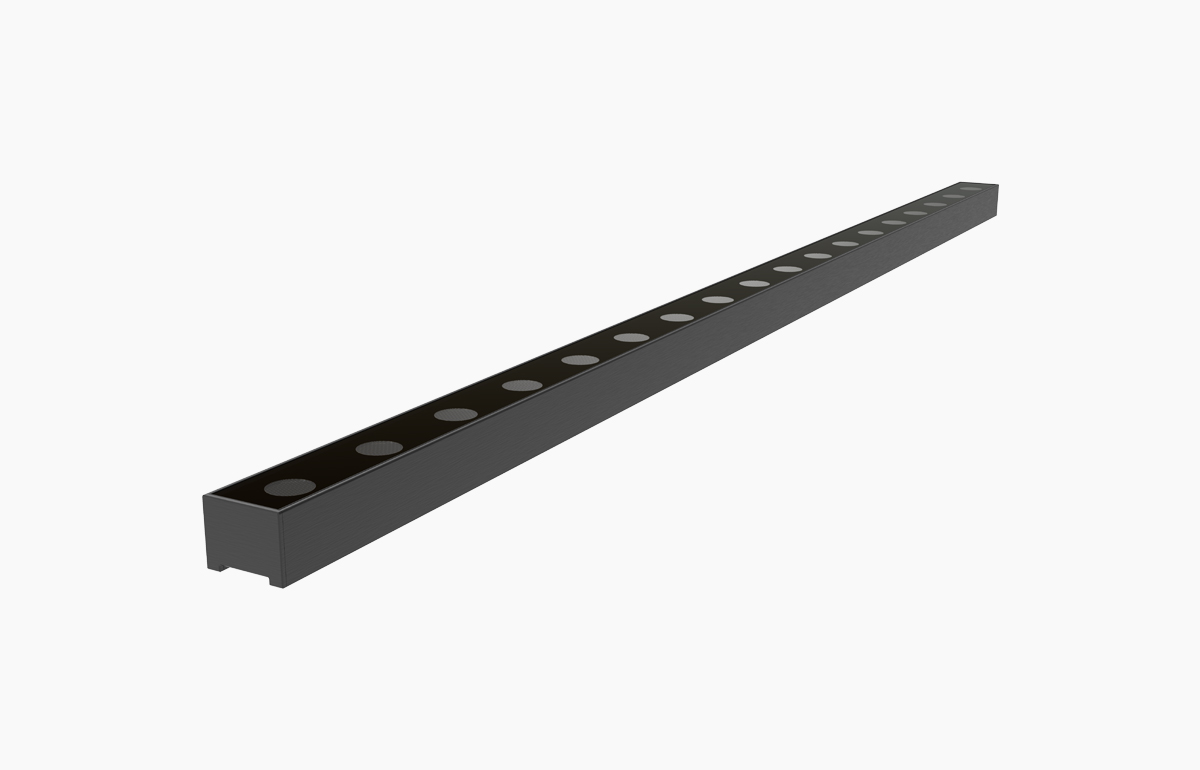

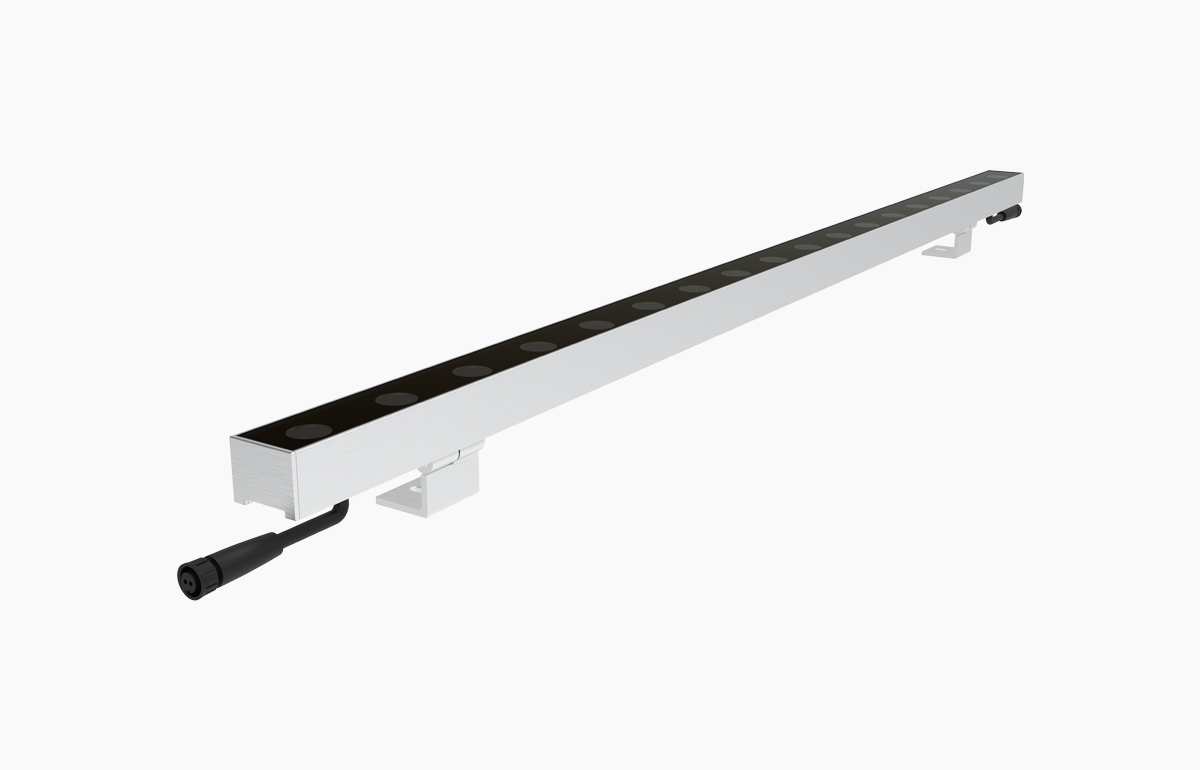

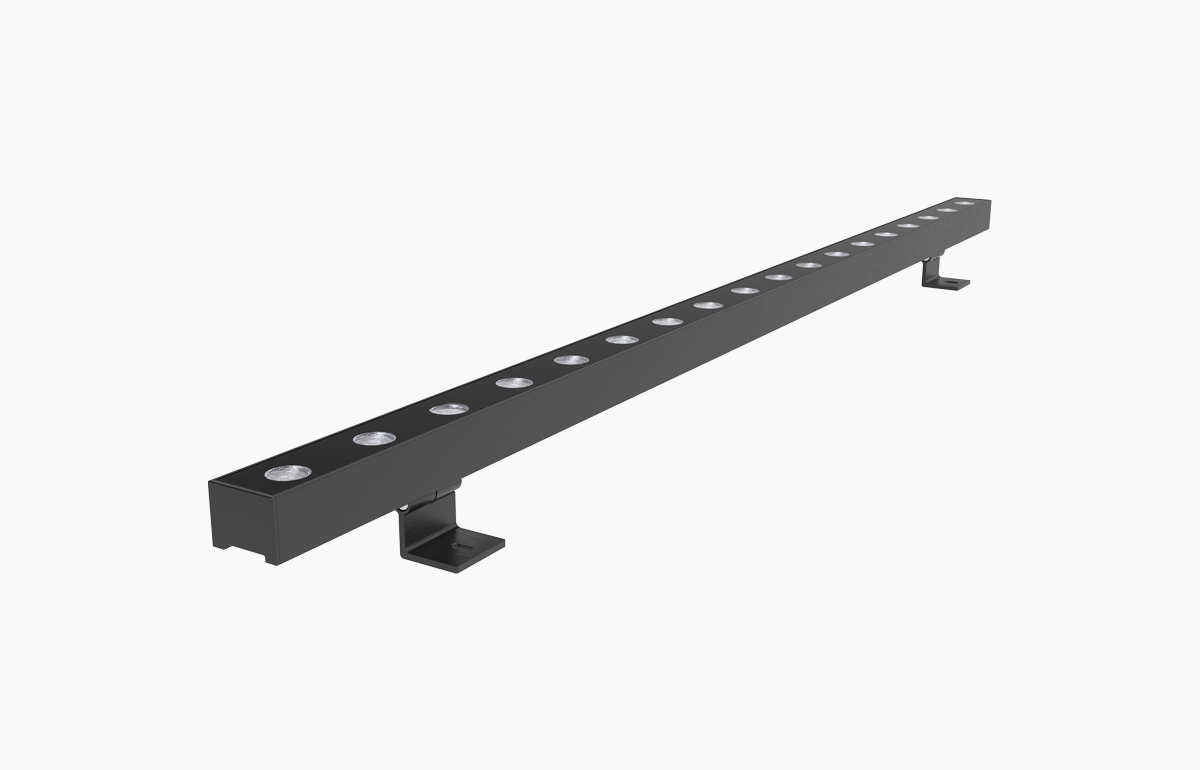

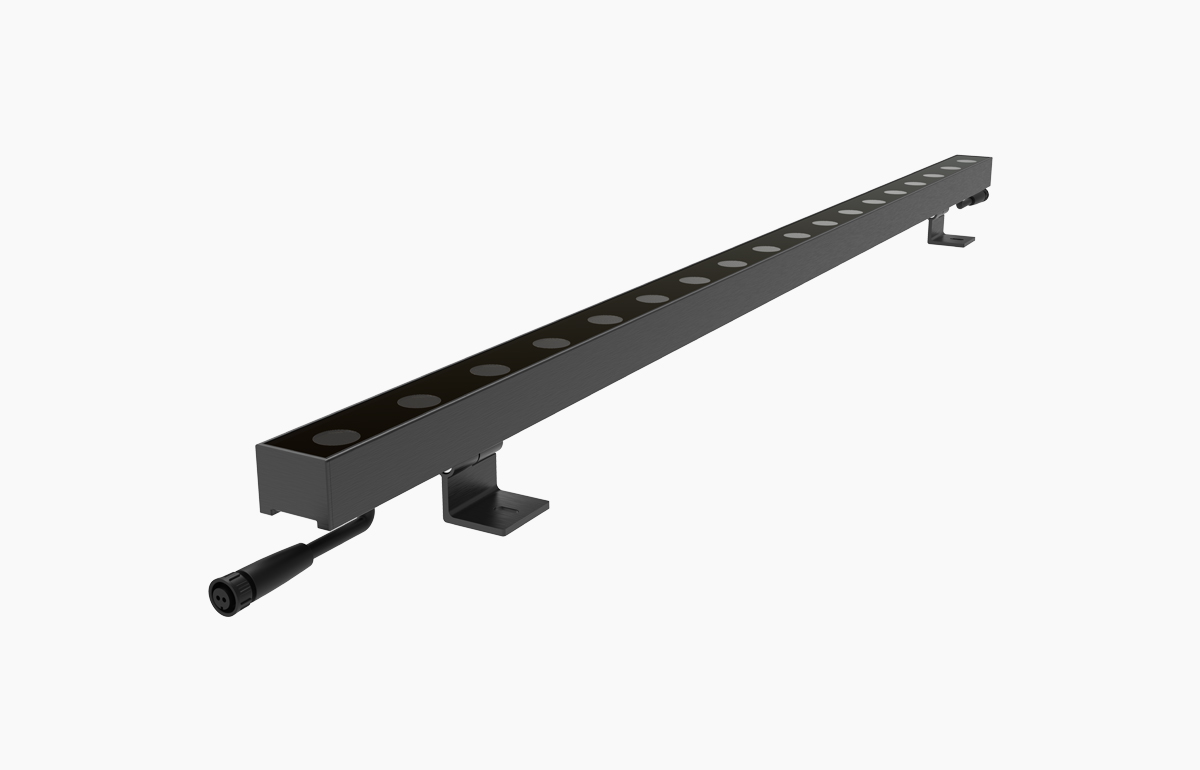

Wall Washer

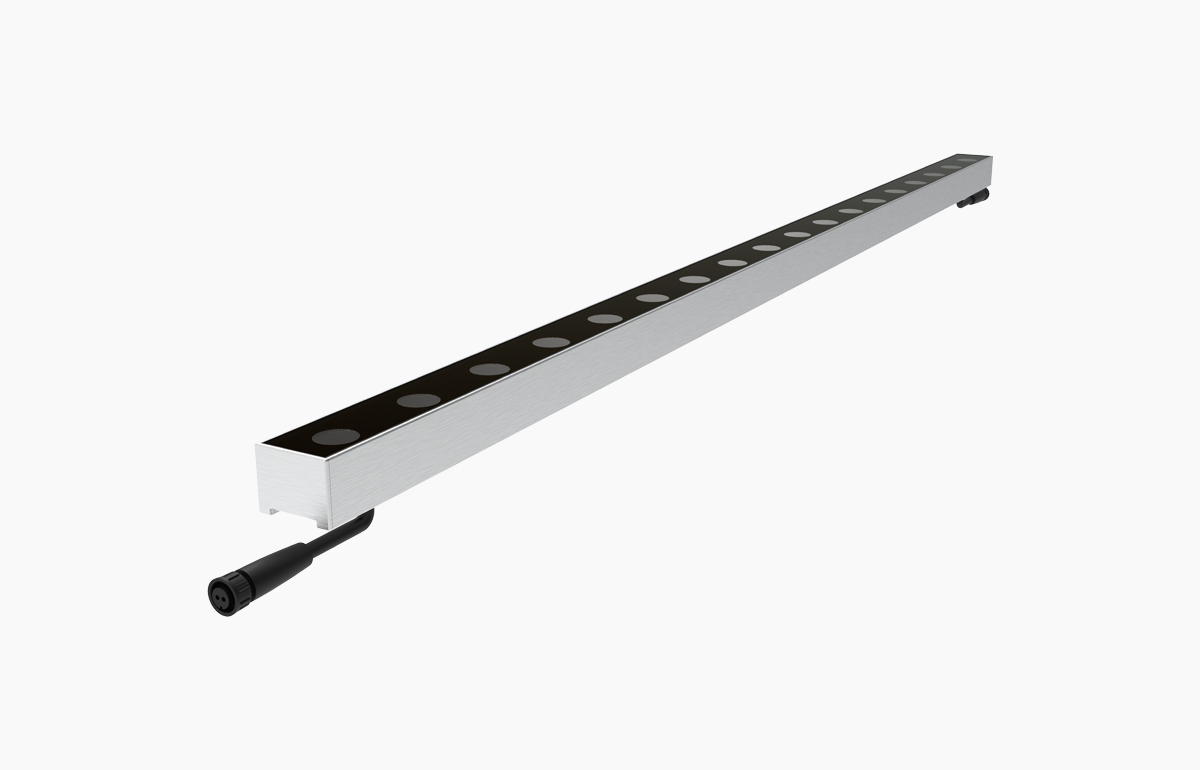

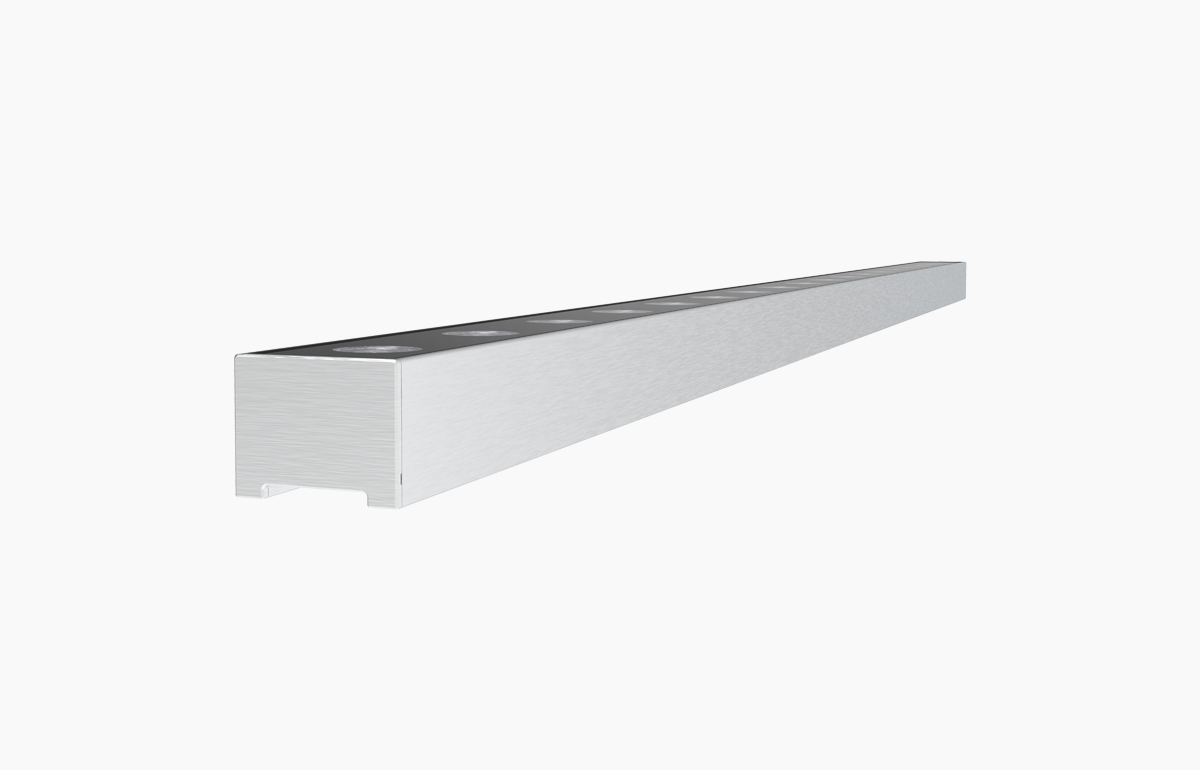

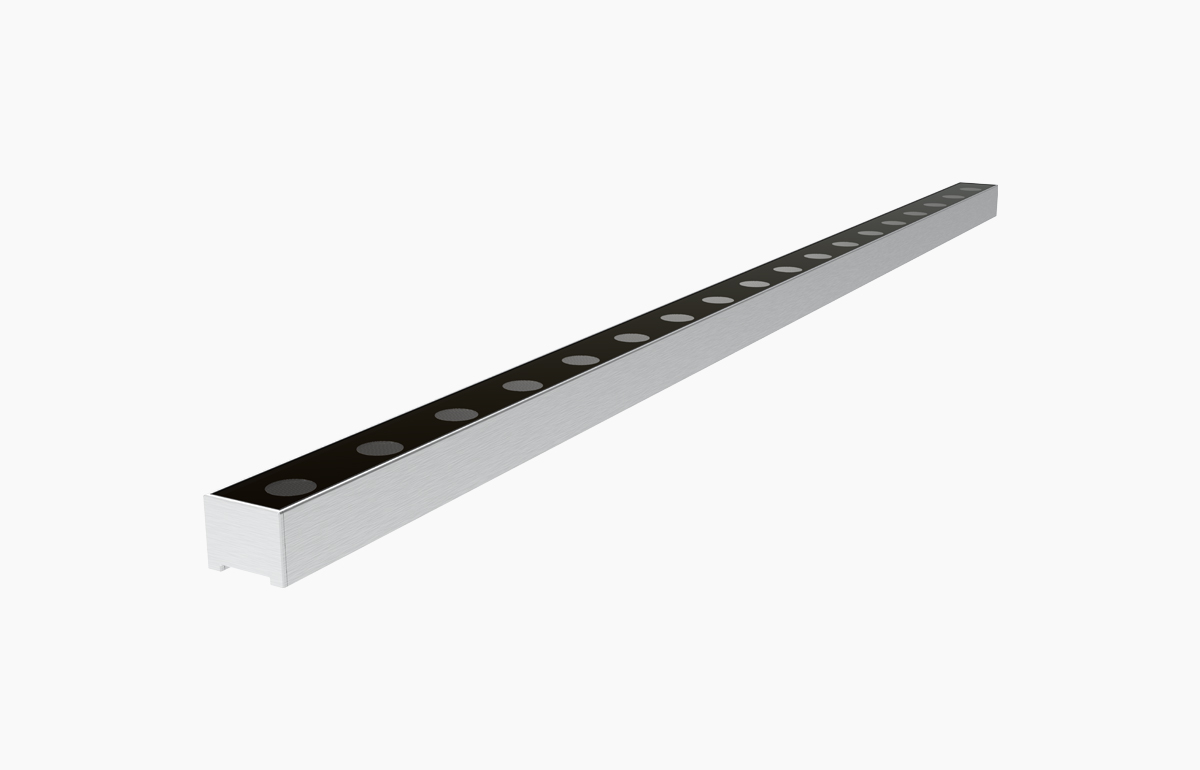

YH-X251012

Lamp body

6063 high-strength aviation aluminum extrusion, surface anodizing treatment or spraying outdoor special sand grain weather-resistant imported powder

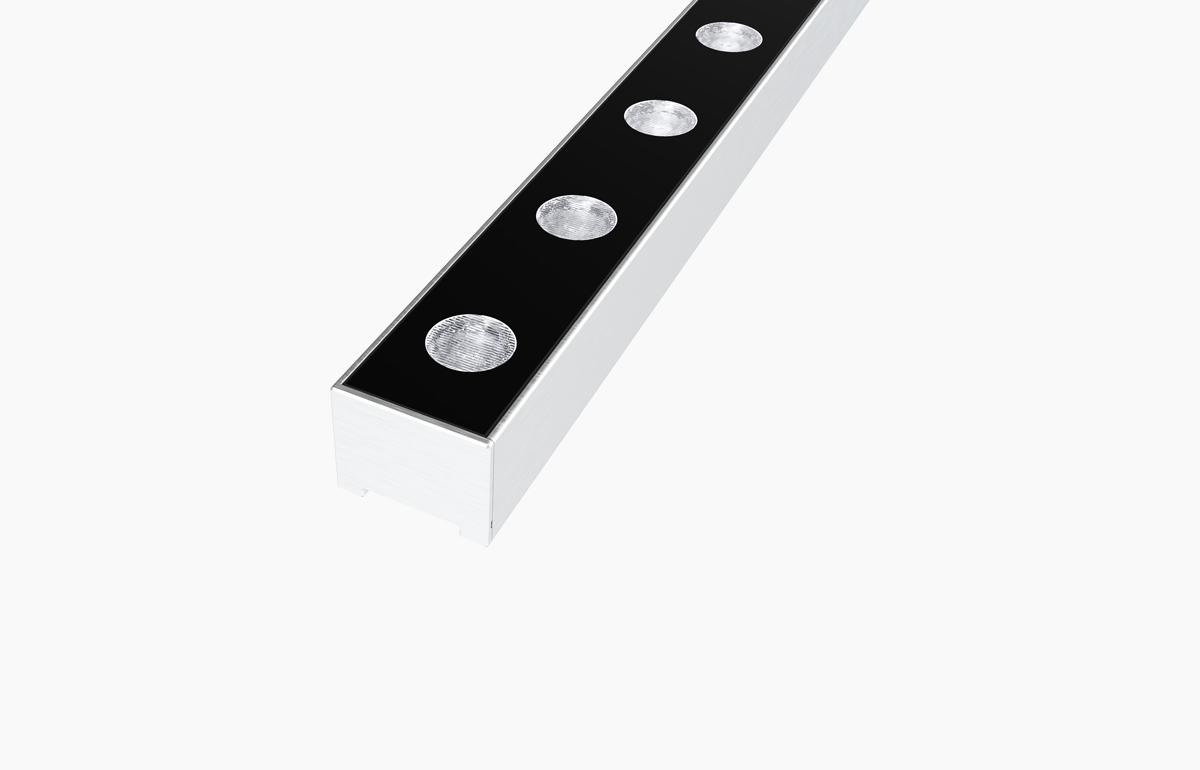

lens

PMMA optical lens, light transmittance up to 90%


Transparent material

Ultra-white 4mm tempered glass


Sealed structure

Structure waterproof or non-vulcanized colloid potting waterproof


Light Engine

Original brand imported light source, optional OSRAM, Cree, Philips, Seoul, etc.


Ambient temperature

-20°C~45°C


Frame

High-strength special aluminum


Electric wire

Corrosion resistant rubber wire 2X1mm², 3X1mm², 2X1+3X0.5mm²


Work style

Switch is always on, DMX512, Triac, PWM, 1-10V


Contact us

Product Details

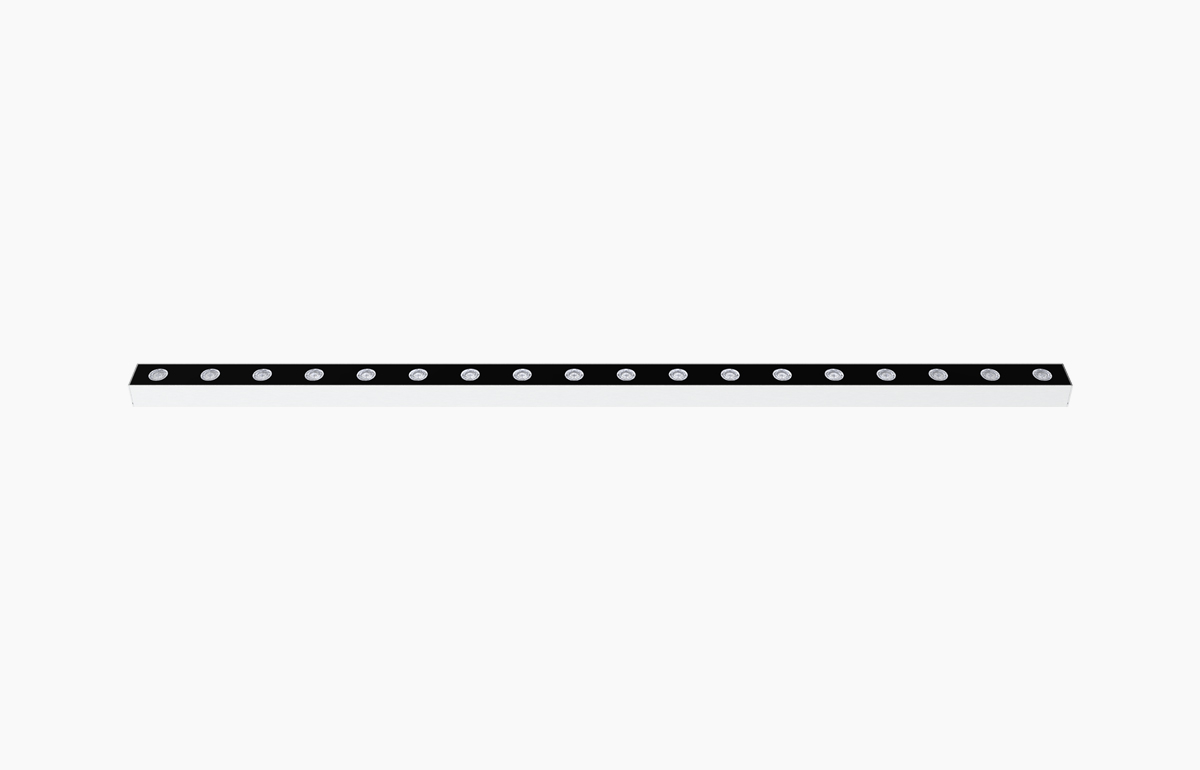

Ultimate and fusion

the ultimate appearance design adapted to modern aesthetics, perfectly integrated with a variety of buildings

Patent and uniqueness

patented screwless and capless design, extreme outdoor protection performance

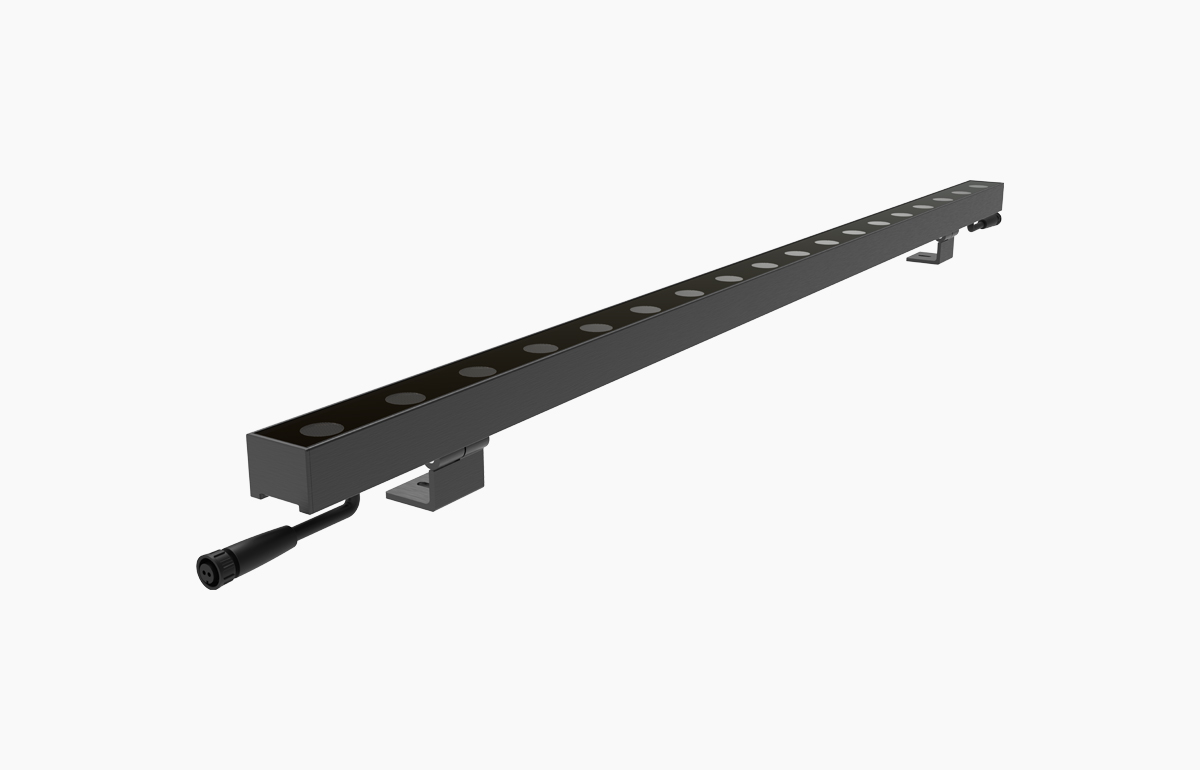

Semi-hidden outlet

to achieve a neater and seamless splicing, reducing unnecessary accumulation of buildings

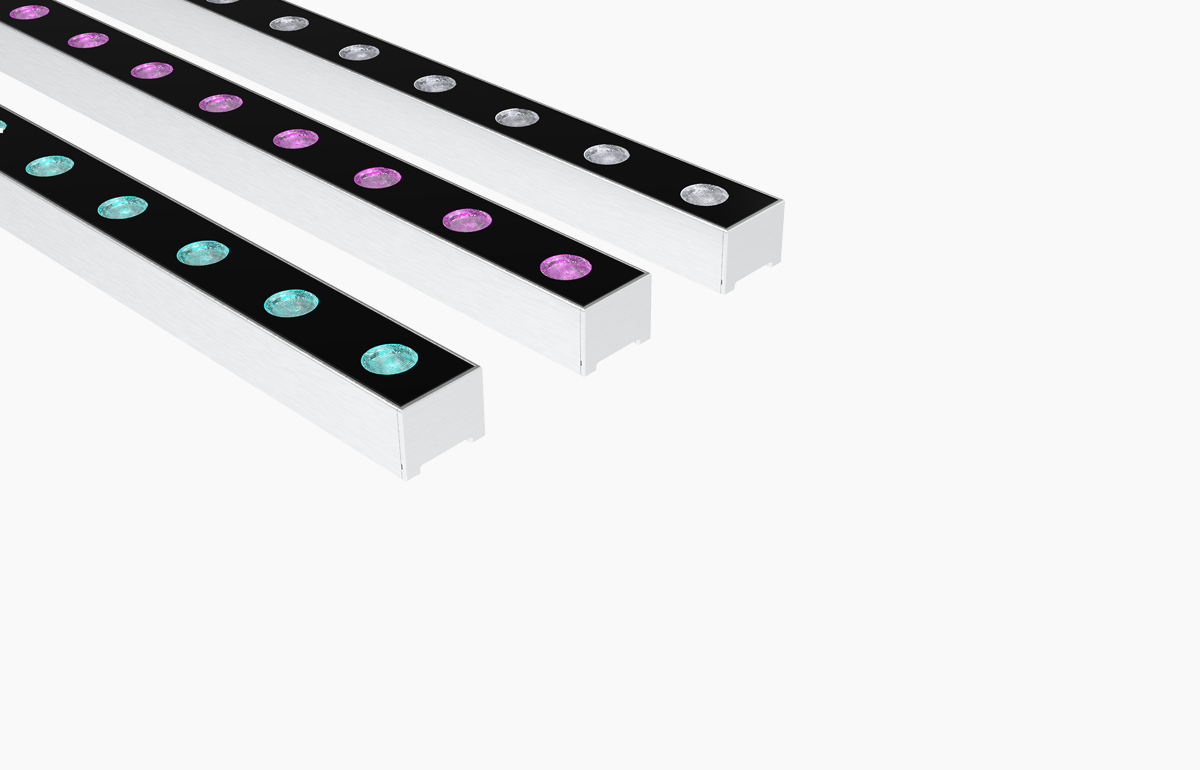

Light and utility

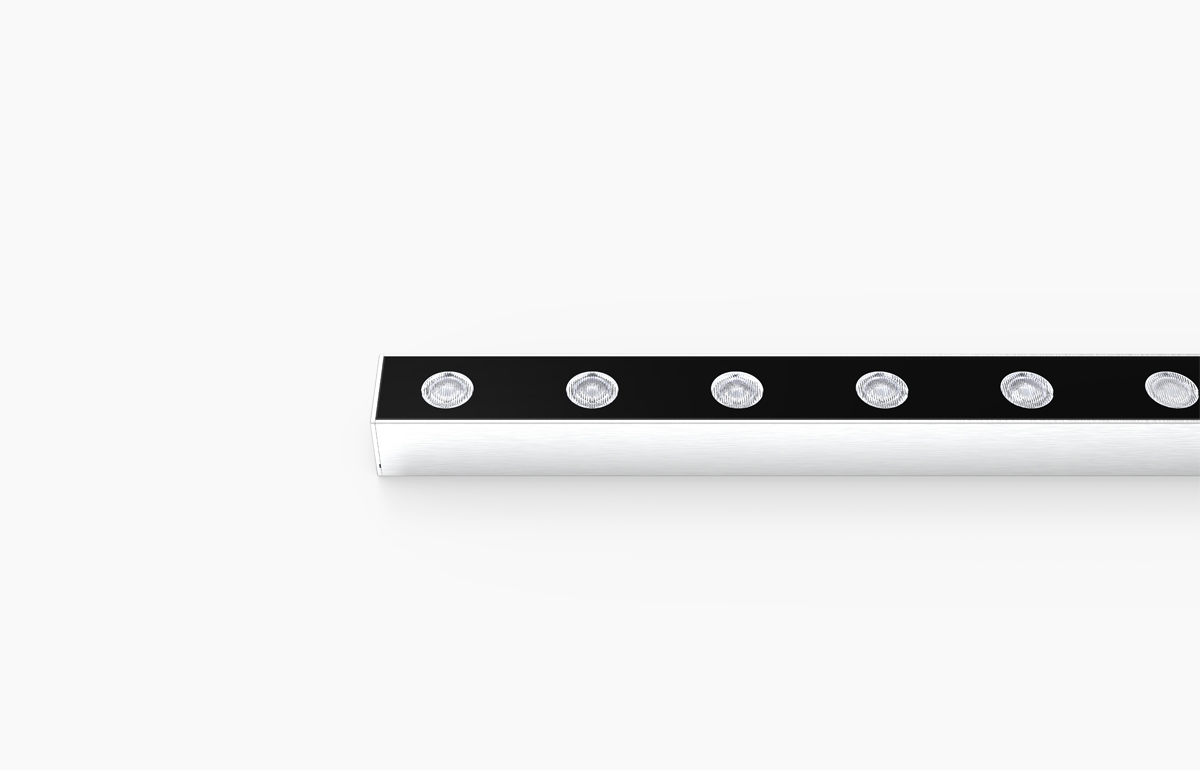

professional light distribution scheme design, ultra-white high-transmittance tempered glass

Heat dissipation and lifespan

The whole lamp is made of high-quality 6063 aviation aluminum, which efficiently improves the heat dissipation performance

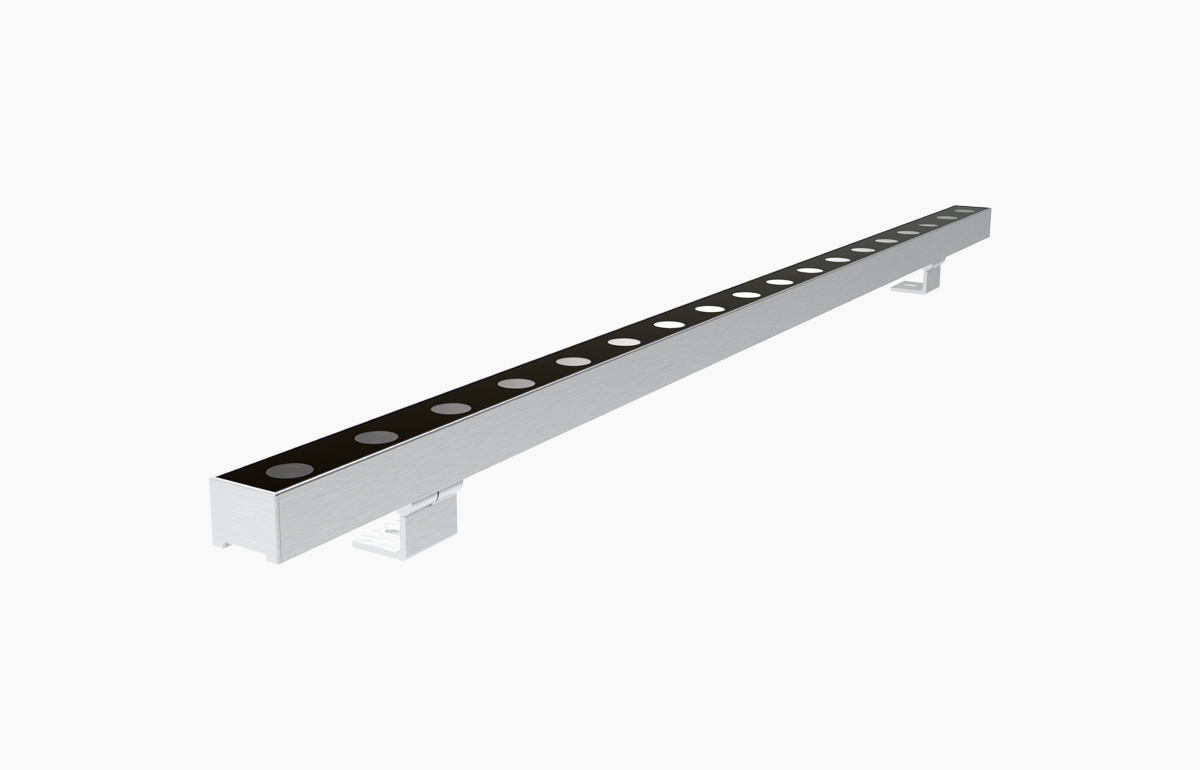

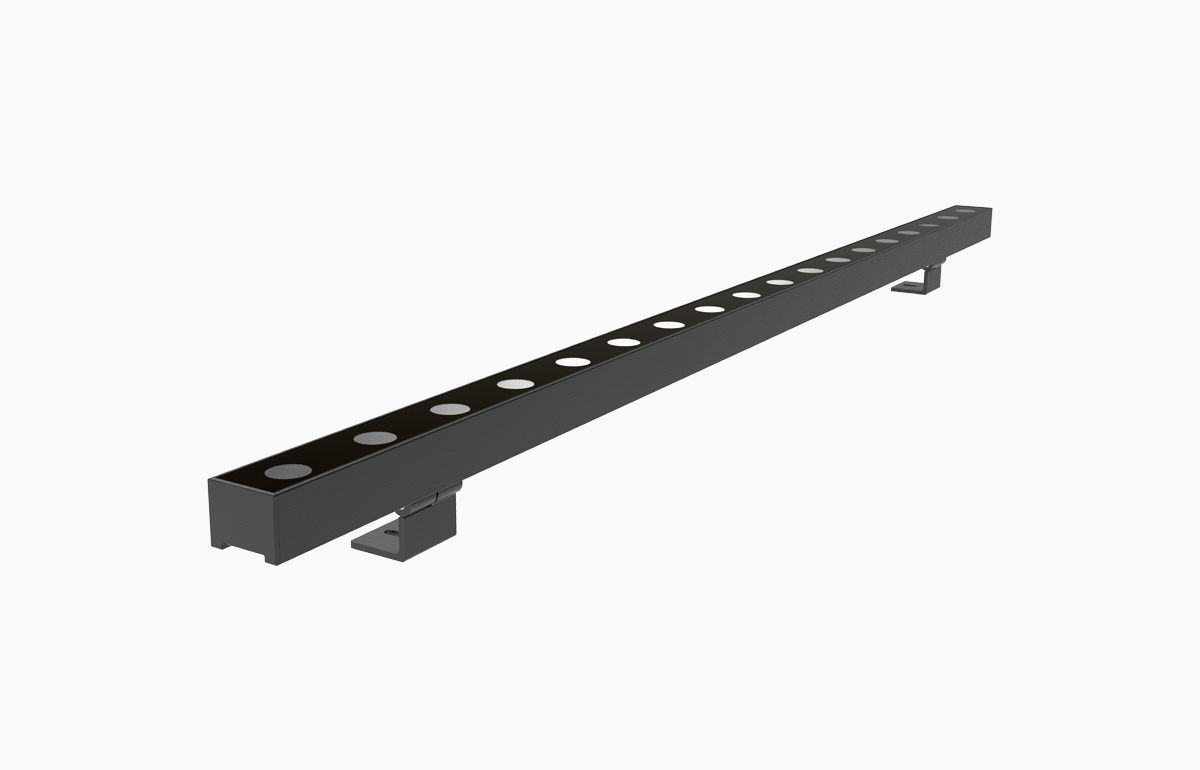

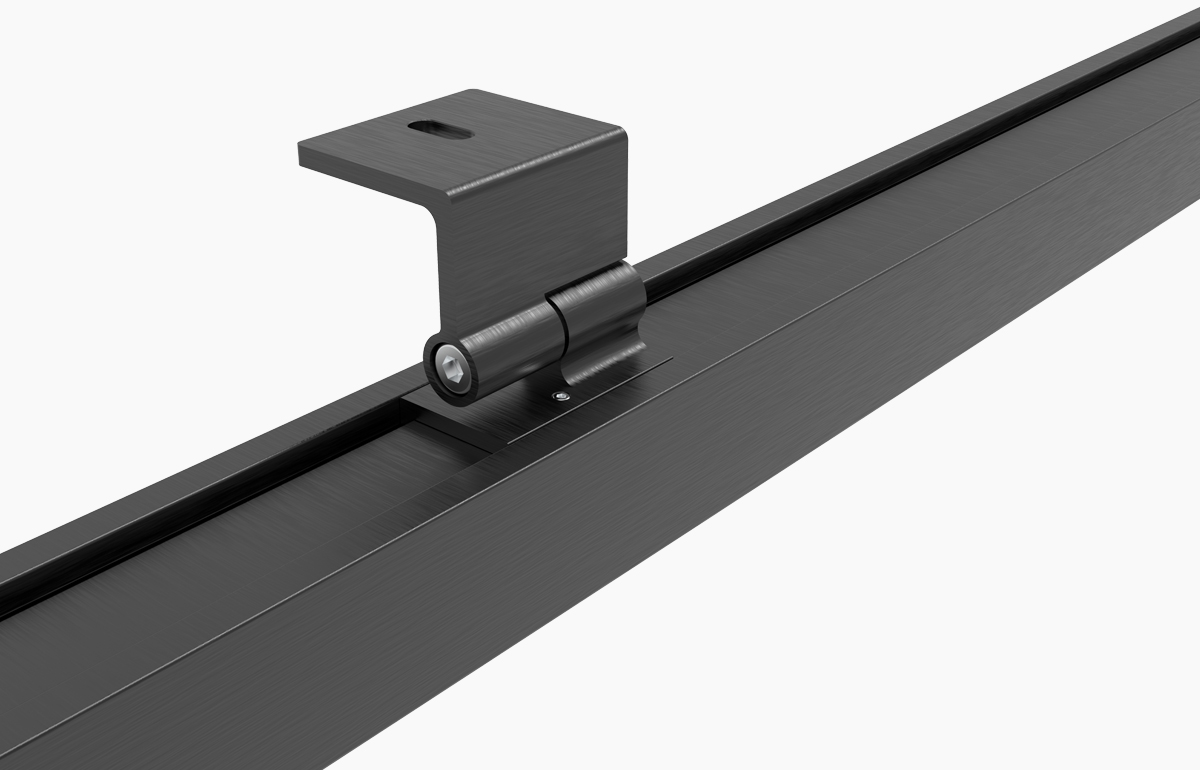

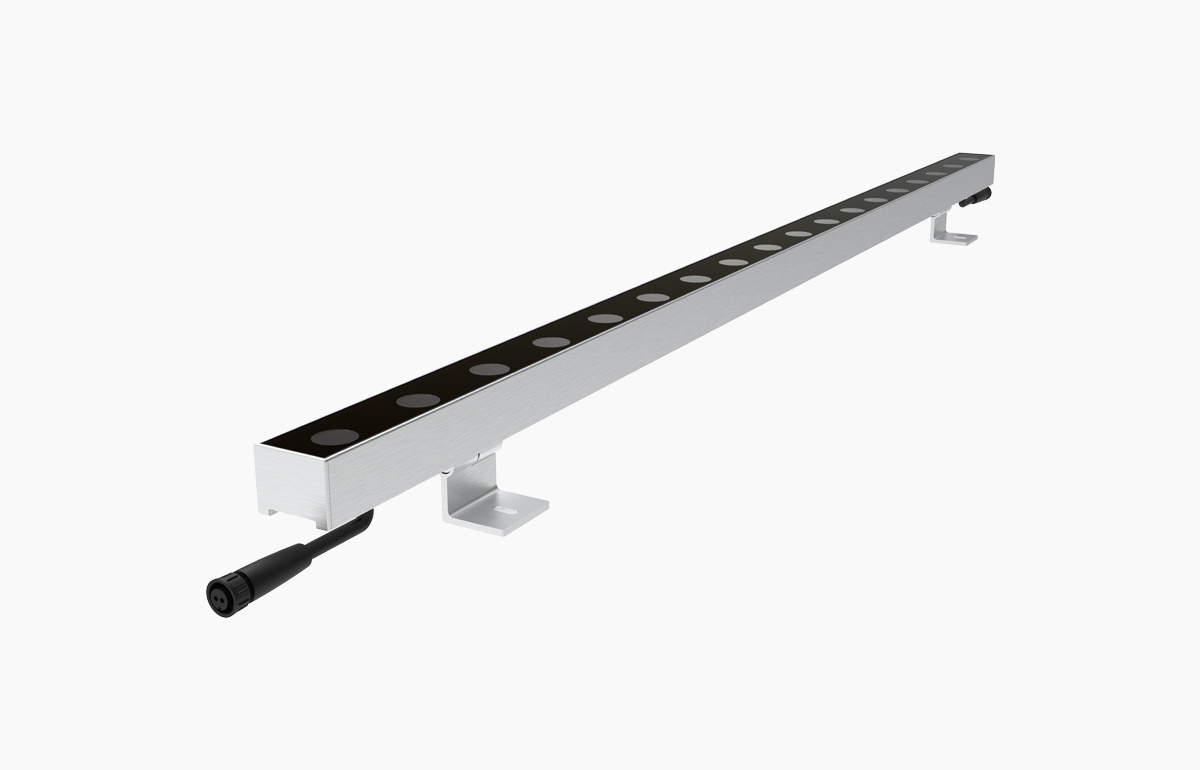

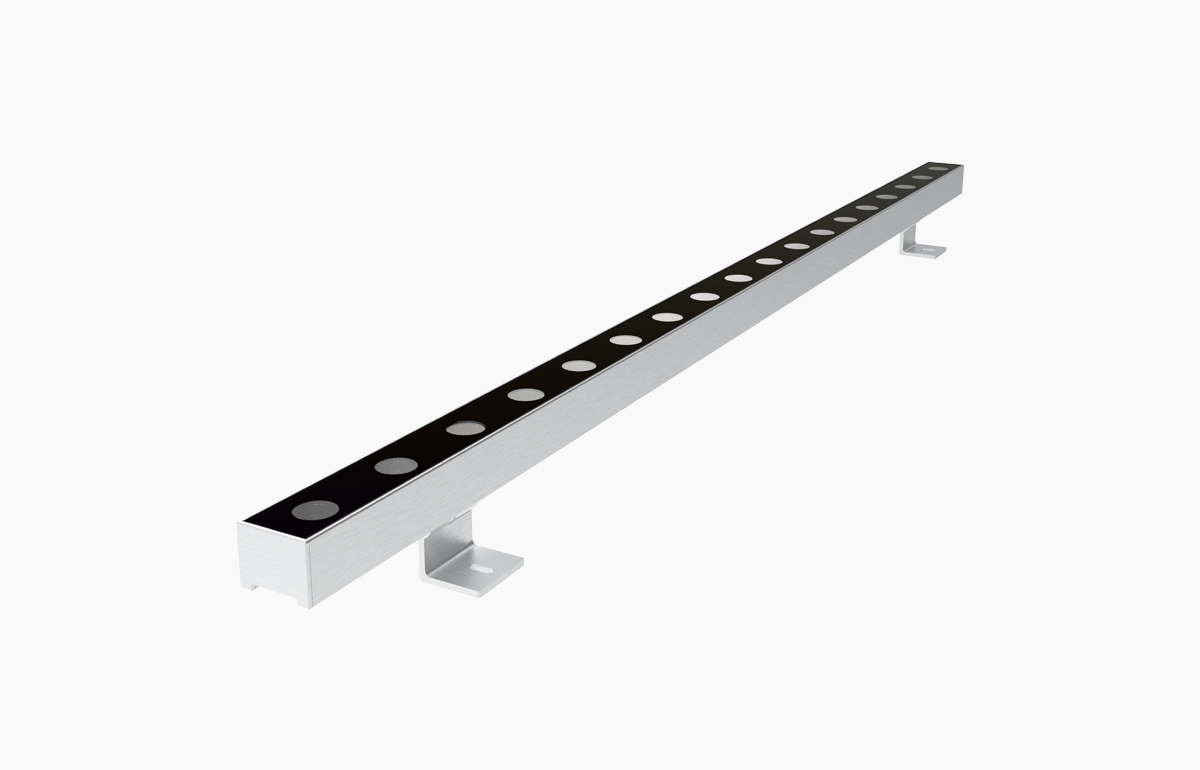

More sophisticated bracket

The bracket has damping and locking functions to provide stable performance and still elegant

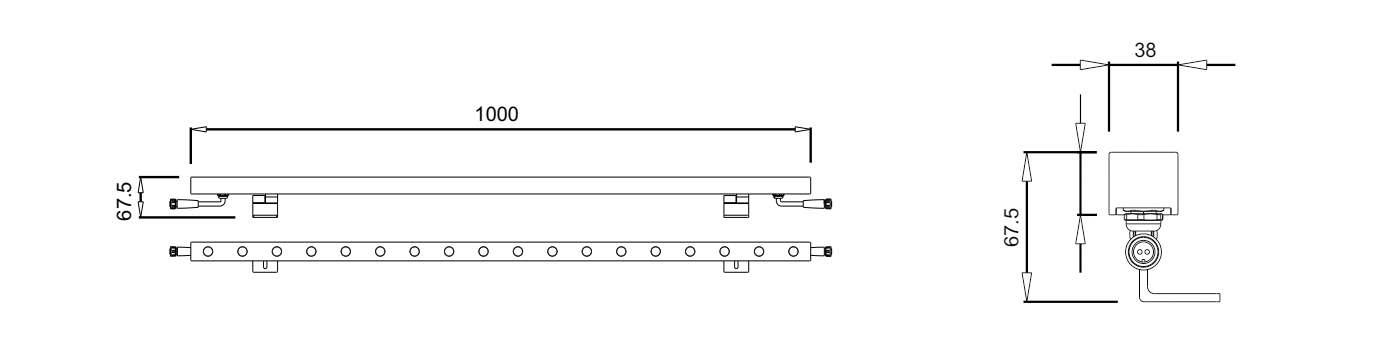

YH-X251012(图1)

ModelProduct CategoryWorking VoltageProduct PowerColor TemperatureLuminous AngleNumber of Light SourcesControl MethodLamp Body MaterialLamp Shade MaterialProtection Level
YH-X251012Wall washer

DC24V

AC220V

18W

24W

36W

48W

3000K

4000K

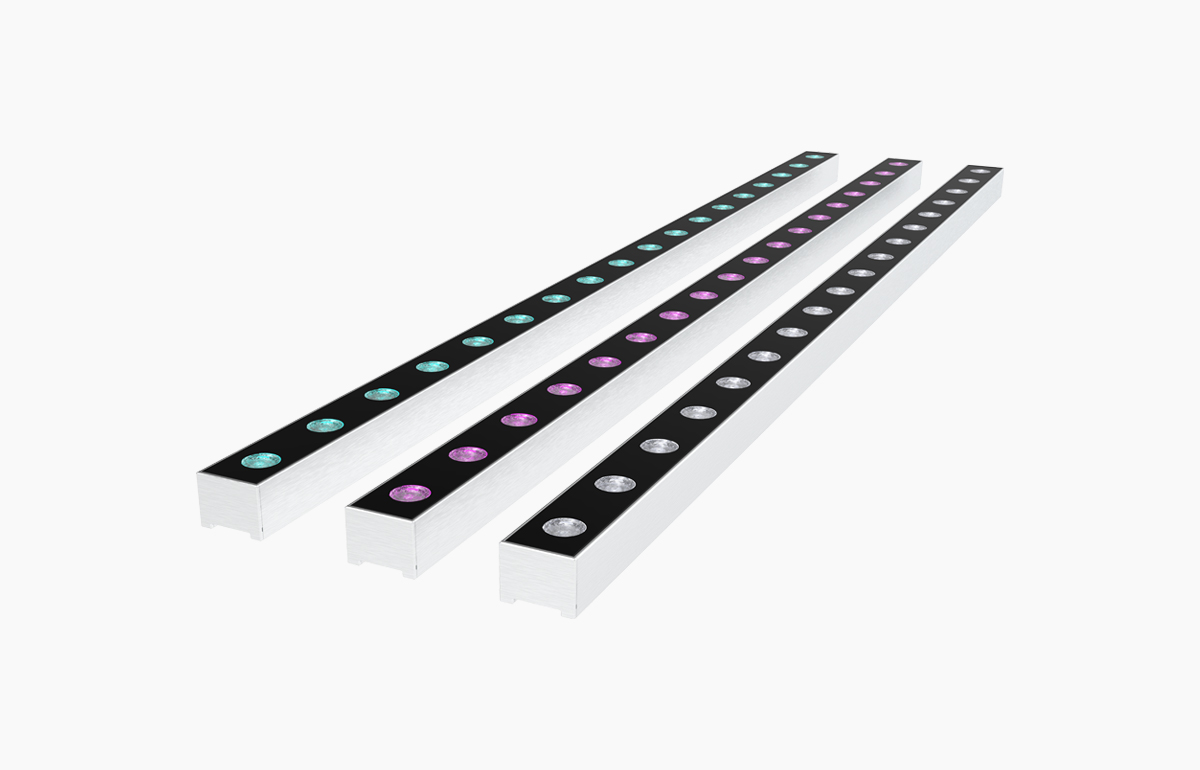

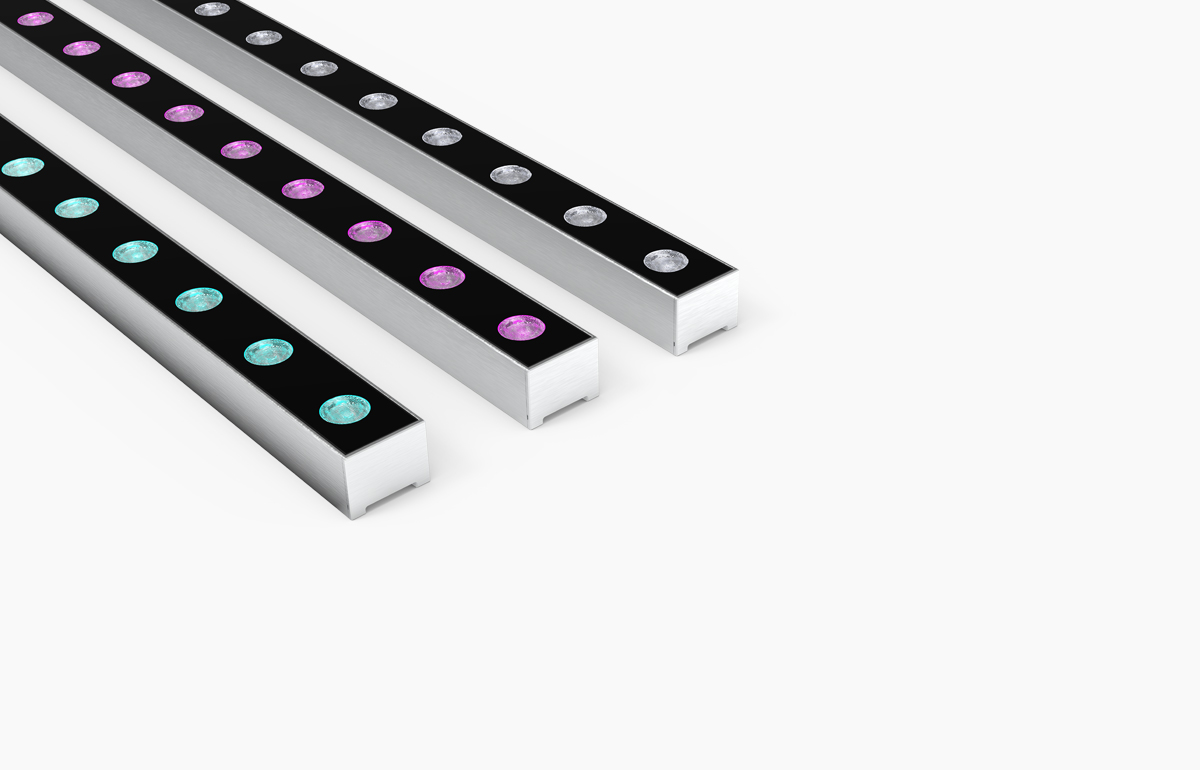

RGB

RGBW

10*60°

20*45°

10°/15°

30°/60°

18

24

18

24

The switch is always on, external control DMX512

6063 Aviation Aluminum

Ultra-white tempered glassIP66
